Nybon Machinery

Nybon JM 35 Ton Electric Winch

Planetary Gear Winch Portable Electric Winch /35 Ton Towing Marine Winch

Brand Name:NybonModel Number:JM
Power Source:ElectricVoltage:220-480V
Application:Mine/boat/shipyard/dock
Quality:Motor drive electric wire rope winch with drum brake
Color:Blue or requiredCertification:ISO CE
Feature:Running smoothlyBrake:Electric Hydraulic Brake
Usage:Pulling or Lifting Goods

Anchor Chain Boats 35 Ton JM Low Speed/High Speed Winch


Nybon Machinery is a famous heavy-duty equipment manufacturer,we have a wide product line covering cranes(overhead crane,gantry crane,ship crane,jib crane.etc),winches(gate hoist,electric winch,diesel winch,hydraulic winch,boat winch,anchor winch.etc)and electric hoists(wire rope hoist,chain hoist,new type hoist.etc).Our gate hoists have been widely used all over the world.



Electric Winch for towing boats or ships/Planetary Gear Winch/Cable Tugger Winch

A device that drives a reel or winding rope by human or mechanical power to perform traction.

Coaxial hoist :(also known as a miniature hoist) motor and wire rope in the same drive shaft, light and small, save space (its tonnage includes 200 kg, 250 kg, 300 kg, 500 kg, 750 kg, 1000 kg, etc.).

1. Slow hoist: the hoist with the rated speed of steel wire rope on the drum is about 7~12m/min.

2. Quick hoist: the hoist with the rated speed of steel wire rope on the drum is about 30m/min.

3. Electric winch: the winch which USES the motor as the power and rotates the drum through the driving device.

4. Speed regulation hoist: the hoist with adjustable speed control.

5. Hand winch: a winch that rotates the drum through a driving device with manpower as the power.

6. Large-tonnage non-standard hoisting machine: mainly used for lifting, pulling and unloading, pushing and dragging heavy objects.

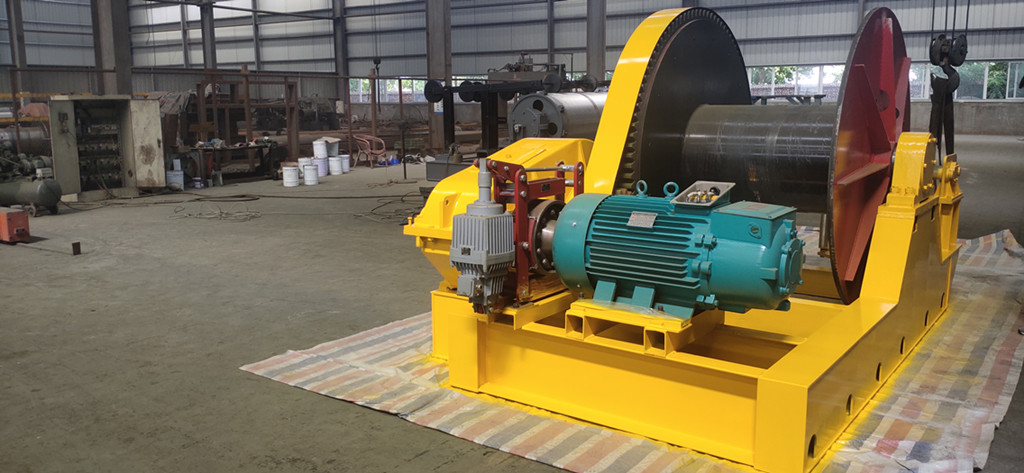

nybon electric winch.jpg




JM Series Slow Speed Electric Winch:


 For boat towing,goods loading ,crane lifting,bridge or road building and installation industry.

 JM Slow Speed Gear Reducer Electric Winch mainly application for hoisting, pulling, and loading load. For example, installation and disassembly of mechanical equipment, steel structure and concrete structure.

Keywords:Electric Winch,Boat Winch,Ship Towing Winch,Heavy Duty Marine Winch,Electric Windlass,Electric Marine Winch.etc


     Nybon Electric Winch Features:

Slow speed, Steadily working

Light duty, compact design, beauty and reasonable price

High strength component, Durable and Reliable

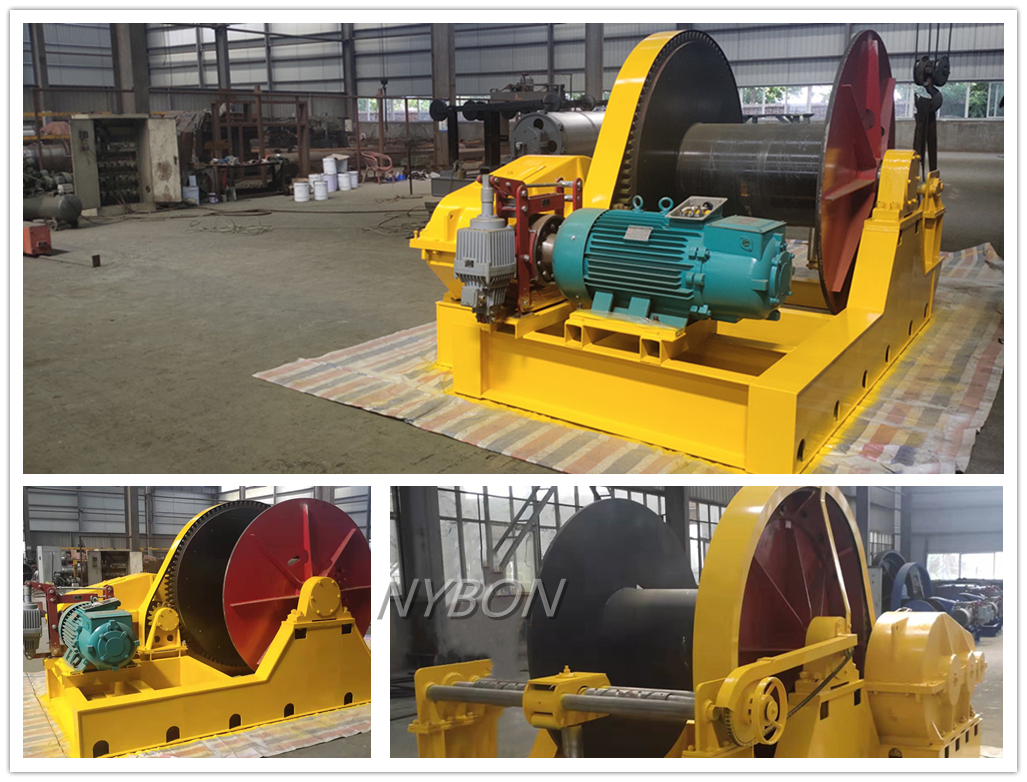

Electric Winch ready to go at our factory:


nybon electric winches.jpg




Basic parametres of Electric Winch:(OEM supported)

Electric Winch Parameter:
Basic ParametersRated LoadAverage Speed of RopeCapacity of RopeRope DiameterMotor PowerOverall DimensionTotal Weight
ModelKNm/minmmmKWmmkg
JK0.55221907.73620x701x417200
JK110221009.34620x701x417300
JK1.6162415012.55.5945x996x570500
JK22024150137.5945x996x570500
JK3.2322529015.5221325x1335x8401011
JK3.2B323025015.5221900x1738x9851500
JK5503030021.5301900x1620x9852050
JK5B502521021.5222250x2500x13002264
JK8802516026451533x1985x10453000
JK101003030030552250x2500x13005100
We can design and manufacture all kinds of non-standard product according to your requirement
