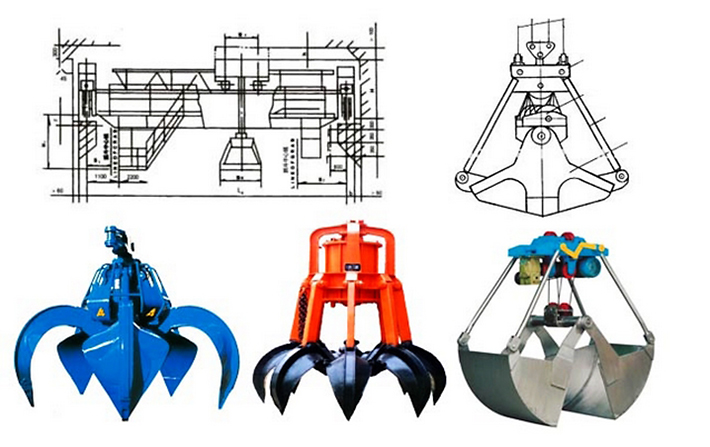

Crane grab bucket Bulk cargo grab

We provide crane kits including beams,motors,hoists,grab buckets,wire ropes,hooks.etc

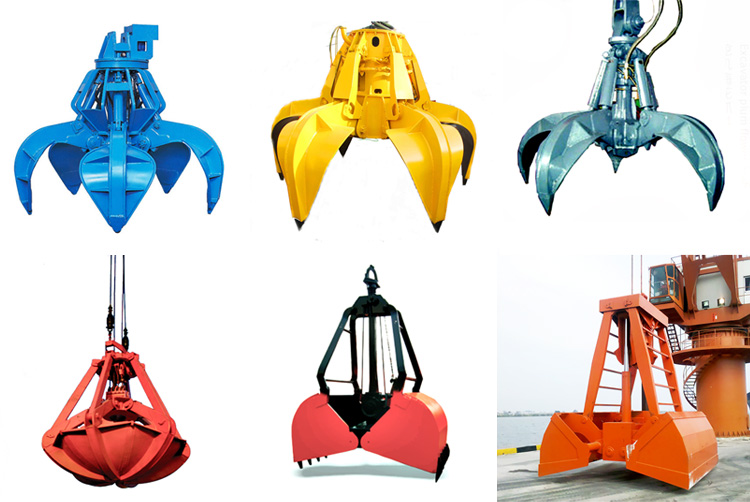

Application Scenarios






Model

Volume(m³)

Grab self weight(t)

Using crane ton(t)

Motor power(KW)

Operating Pressure bar

Close time(S)

DYZ3(0.5)

0.5

1.5

3.2

11

180

10

DYZ3(0.6)

0.6

1.7

3.2

11

180

11

DYZ5(0.8)

0.8

2

5

15

180

13

DYZ5(1.0)

1

2.5

5

15

180

14

DYZ10(2)

2

4.2

10

22

200

16

DYZ52.5)

2.5

2.6

5

18.5

180

17

DYZ10(3.0)

3

3.8

10

18.5

180

20

DYZ10(5.5)

5

4.3

10

22

200

19

DYZ16(2.5)

2.5

5.5

16

30

200

16

DYZ16(8.0)

8

5.6

16

30

200

19

DYZ20(4.0)

4

7

20

37

200

17

DYZ20(12)

12

8

20

37

200

25

DYZ25(17)

17

9

25

45

200

26

DYZ30(20)

20

11

30

45

200

28




QZ Model Double Girder Grab Bucket Overhead Crane


nybon overhead crane.jpg


Basic Characters of Nybon Grab Bucket Bridge Cranes


■   Working condition:Indoor & Outdoor

■   Working temperature: -25-50°C


MODEL :QZ

Load capacity: 5-20t;Span Length: 10.5-31.5m

Lifting height: 18-20m;Lifting speed: 40m/min

Trolley Travelling Speed:45m/min

Crane Travelling speed: 85-110m/min

Work duty: A6

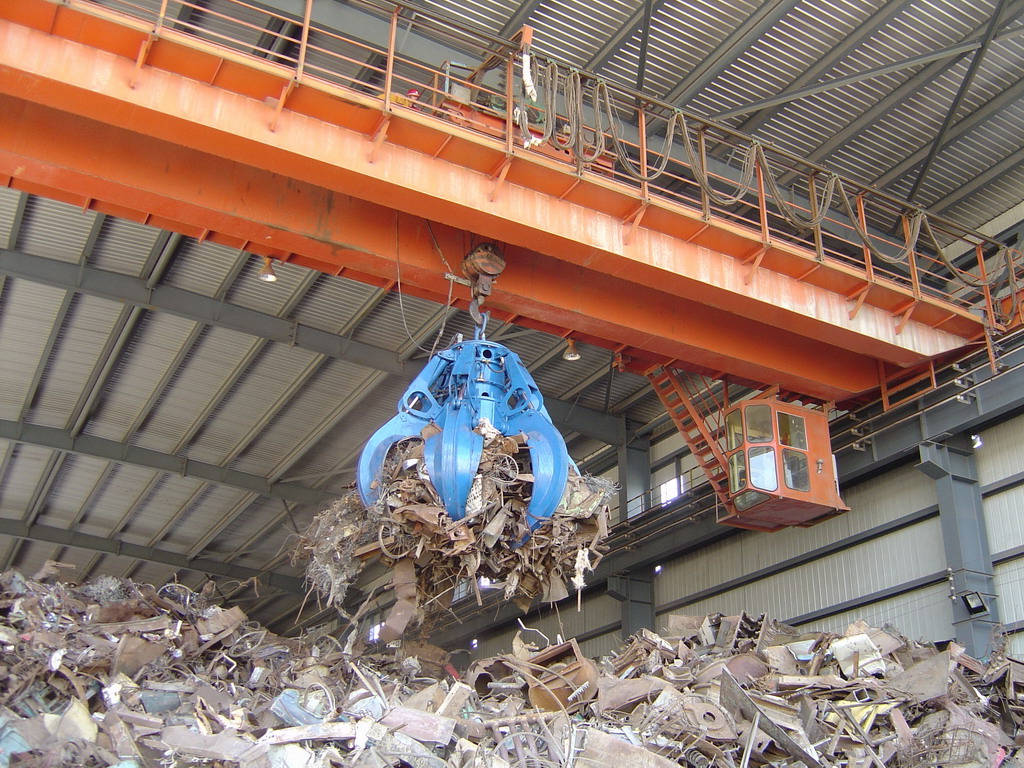

Application:QZ Model Motor-driven Double Beam/Girder Grapple Crane is widely used to transport, assemble, load and unload incompact goods in mine, port, factory, workshop, warehouses, and goods yard, etc.



Introduction of QZ Type Double Girder Bridge Crane with Grabs


■   QZ type double girder bridge crane with grab lifting system , it includes main girder ,long travelling driven system ,hoisting system ,grab ,electrical box part.

■   It is mostly used at material factories to grab powder/partial cargo, garbage stations or some electric power stations to grab wasted material ; cab operation and high efficiency working each day ,high working-class A6

■   Grab's open direction is divided into parallel and vertical with the main beam and the grab can be double or four-wire rope, mechanical or electric hydraulic type according to different work duty and materials.


QZ Model Double Girder Grab Bucket Overhead Crane 5 Ton




Main Features of QZ Overhead Crane

1). Reasonable structure,strong bearing capacity
2). Low noise, soft starting and stopping
3). Safe and reliable operation
4). Commodious cabin and open view
5). Low-cost maintenance, long working life

6). Strong box type,welded by machine hand.

7). Wheels are vacuum casting,medium frequency quenching

8). Wheels,wire-rope drum,gears, couplings are processed by CNC machine center, TOP quality control.

9). Heavy-duty slip ring motor,Or Sq.cage motor with VVVF, IP54 or IP44,insulation class F or H,soft starting and smooth running.

10). Siemens main electric parts are used for durable and safe operation



Application and Parameters of Nybon Grab Bucket Cranes

QZ Model Double Girder Grab Bucket Overhead Crane.jpg



Rated load/ton

5

 10

 16

 20

 25

Span/m

10-40

Lifting height/m

22

Working class

A6/3M

Lifting speed/m/min

 40.8

40.26

 41.8

 48.5

38.8

Open-close speed/m/min

40.8

40.26

41.8

48.5

38.8

Trolley running speed/m/min

 44.5

 45.6

 43.2

 43.2

 43.2

Crane running speed/m/min

 92

 86.5

87

87

 87

Dead weight/t

17.5~38.5

 25.1~46.6

43~63

50.6~70.7

 54.2~75.8

 Number of wheel

 4

 4

 4

4

4

Max. wheel pressure/KN

75~17.4

 117~186

 202~258

 235~302

 255~320

Steel track recommended

 P43

 P43

 P43

 QU70

 QU70

Power supply

3AC  220~480V  50/60Hz



We provide crane grab buckets/Electro-hydraulic bulk cargo grab,welcome to send a free inquiry.Email:info@nybonmachinery.com
