Spillway Gate Hoist with Double Lifting Point

Spillway Gate Hoist/RADIAL GATE HOIST Product:Electric Winch Type Sluice Gate Hoist for Dam

Specially manufactured to lift radial, tainter and bulkhead gates
Dual and single drum models available in capacities up to 300tons
Designed and manufactured to meet application specifications
Features include sealed gearing, marine-grade motors and rotary limit switches
Proportional variable output transducers ensure accurate gate positioning
Gate hoist designs are certified and stamped by professional engineers

Spillway Gate Hoist with Double Lifting Point


Nybon Machinery is a famous heavy-duty equipment manufacturer,we have a wide product line covering cranes(overhead crane,gantry crane,ship crane,jib crane.etc),winches(gate hoist,electric winch,diesel winch,hydraulic winch,boat winch,anchor winch.etc)and electric hoists(wire rope hoist,chain hoist,new type hoist.etc).Our gate hoists have been widely used all over the world.


Dam Gate Winch Hoist/Flat Gate Lifting Hoist for Hydropower Station

Nybon sluice gate hoist dam winch for hydropower station is widely used in irrigation, hydropower station, the river, irrigation system, reservoirs and other water conservancy projects. It consists of the shell, cover, nut, pressure bearings, mechanical lock, and screw shank. It is flexible for opening and closing the sluice gate, so it is the ideal equipment for a water conservancy project.


Spillway Gate Hoist: a high capacity fixed hoist mounted on an autonomous structure serving the spillway of a water retention construction adjacent or remote from a powerhouse.

The spillway gate hoist is dedicated to one gate and is permanently attached to it, thus operating in a cold and damp environment.

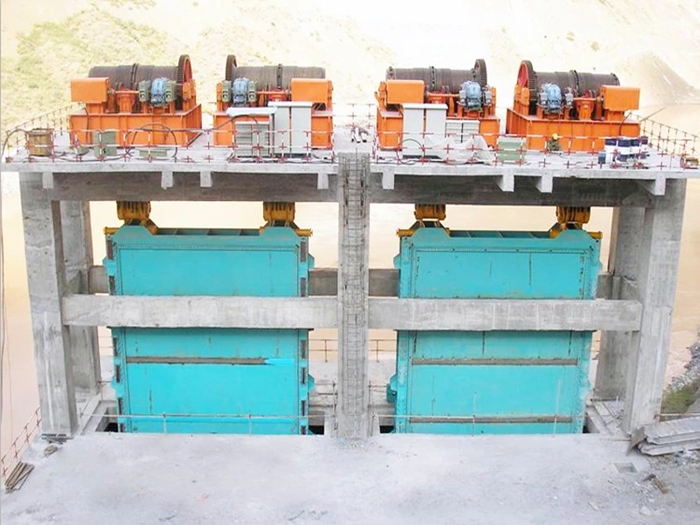

nybon spillway gate hoist.jpg





Advantages & Safety features:


● Widely used in hydropower station, river and water conservancy facilities.
● Especially for FLAT/SLUICE GATE hoisting and lowering.
● Single or double lifting points on optional.
● Hoisting slings is wire rope, pulley block falling from drums;
● Electric motorized, Centralized drive or individual drive.
● Manual drive assembled when electricity fails.
● Overload limiter, height indicator are all included. etc.


Keywords:Tainter Gates;Radial Gate Hoist;Spillway Gate Hoists;Gate Hoist;Sluice Gate Hoist;Sluice Gate Goist for Dam;Winch hoist;Radial Gate Hoist;


Reliable and efficient Spillway Gate Hoists

Spillway gate hoists are often operated remotely.

Spillway gate hoists require extreme reliability as their operation can be required in emergency situations. Spillway gate hoists should be designed to handle the extreme load conditions generated by motor stall torque in case of dynamic asymmetrical jamming of the gate in the embedded guides. Spillway gate hoists should also be able to allow the controlled descent of the gate in case of power failure.

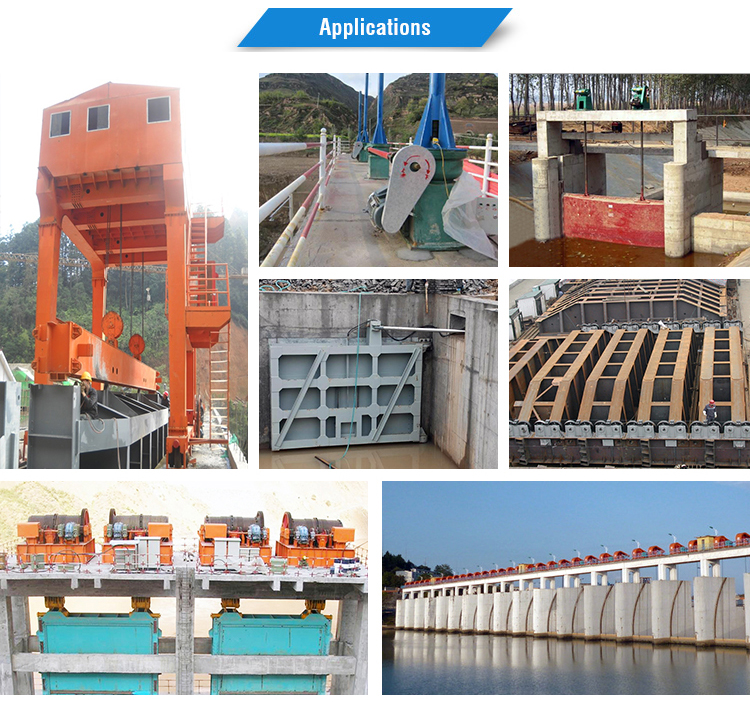

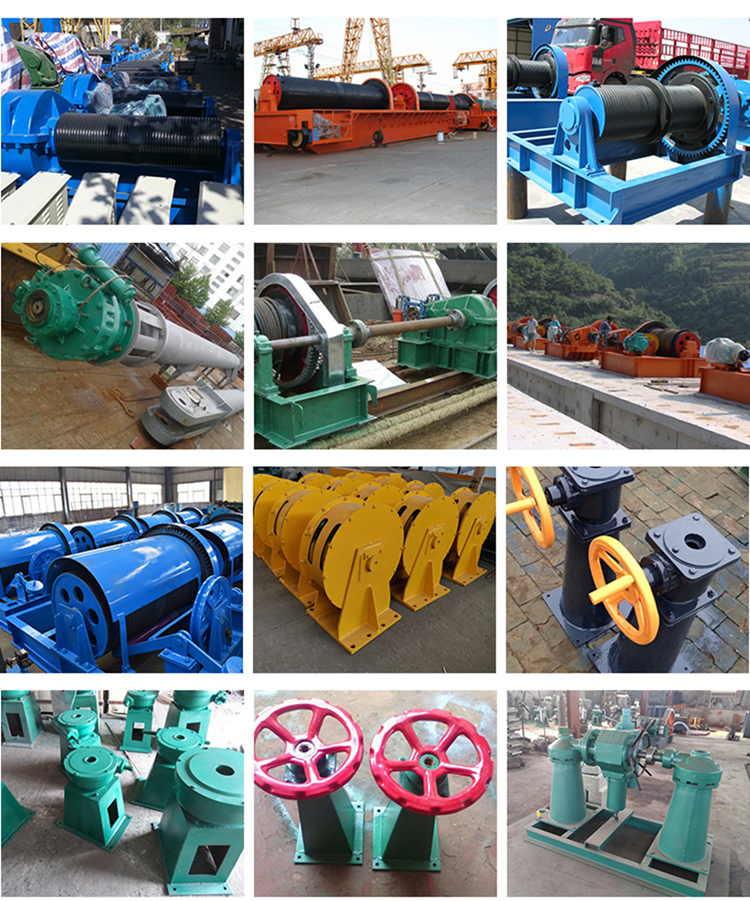

Spillway Gate Hoists Application:




gate hoist application.jpg




Other types gate hoists:







ItemModelLifting force(KN)Height(m)Speed(m/min)Lifting points distance(m)Motor Power(kw)BrakeWeight(kg)
Double lifting pointsQHQ2x602x60101.242.5-8Y160M-67.5TJ2-2004125
Double lifting pointsQHQ2x802x80101.242.5-8Y132M-62x4.0TJ2-2005110
Double lifting pointsQHQ2x1002x100101.585.1-10Y160M-67.5TJ2-2005810
Double lifting pointsQHQ2x1252x125111.65.1-10Y160L-611TJ2-2007230
Double lifting pointsQHQ2x1502x150101.585.1-10Y180M-611TJ2-2008500
Double lifting pointsQHQ2x2502x250151.585.4-12Y180M-615TJ2-20013280


Spillway Gate Hoist with Double Lifting Point
