Steel Rail Wheel Forged Stainless Steel Crane Wheel

High Performance Crane Wheel

Description:Crane accessories
Type:Crane Forged WheelApplication:Valve Industrial
Processing:Investment forging+Machining+Grind
Material:Alloy/Aluminum/Stainless steel
Tolernace:Controlled by ISO 8062 CT4-6
Quality Control:Material, Dimension,Performance,inside defects,Balance test
Standard:ASTM,DIN,JIS,ISO,GB standards

Steel Rail Wheel Forged Stainless Steel Crane Wheel



Nybon Machinery is a leader in providing overhead cranes,gantry crane,jib cranes,ship cranes,electric winches,hydraulic winches,diesel winches,electric hoist and relative components for shipyard,automotive,material handling, specialty machinery, and workshop solutions. Our diverse portfolio also includes a wide range of lifting products for industrial, commercial and specialty applications.


Steel Forged Assembly Crane Wheel

Crane wheels are usually used to support cranes and winches to make the crane move back and forth on the track. Some have been replaced due to pitting corrosion and peeling due to flange wear, flange fracture, and mechanical overload. Before choosing a combination of wheel design, material selection, hardness mode, and heat treatment technology, each of these factors in use must be carefully considered.

This is why every hardened steel crane wheel is specially designed and heat-treated to maximize resistance to the destructive forces of work in heavy industrial applications.

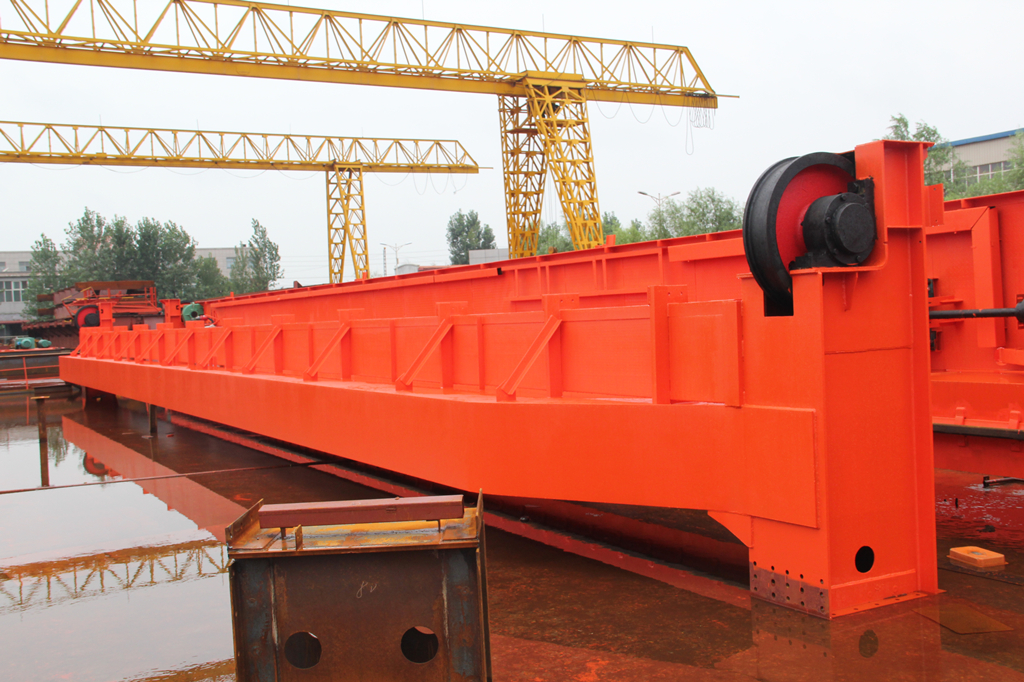

nybon crane wheel.jpg





Nybon Machinery Components Policies:

1. Trusted supplier of steel, iron & non-ferrous components;

2. Extensive documented quality program in place.

3. Castings, forgings, stampings, machining, welding & fabrication services.

4. 9 related factories, over 50 joint-venture sub-contractors.

5. 25+ years of manufacturing experience, 10+ years of exporting experience.

6. 100% of products sold to overseas customers.

7. 50% of the customer base is fortune 500 companies.


Technical Requirements:

High duty crane usage rail forged steel wheels are widely used in the overhead crane and gantry crane, rail transfer cart, transportation carriage, mill and airlines vehicle, railway locomotive, construction machinery and so on.

Our company has our own mature production line of trailer wheel sets , we can provide the wheels with different materials, such as ZG430640 cast steel, 60#,65 # , 65Mn, 42CrMoA or according to your requirements.


Features:

  • 1) Material: cast steel or cast iron, such as ZG55,ZG65,ZG50SiMn or as requested;

  • 2)Wheel diameter: Φ150mm-Φ900mm, or as your demands;

  • 3) Tread Hardness:260-380HB;

  • 4)Load capacity: 0-300ton;

  • 5)Flange: Single or double flange;

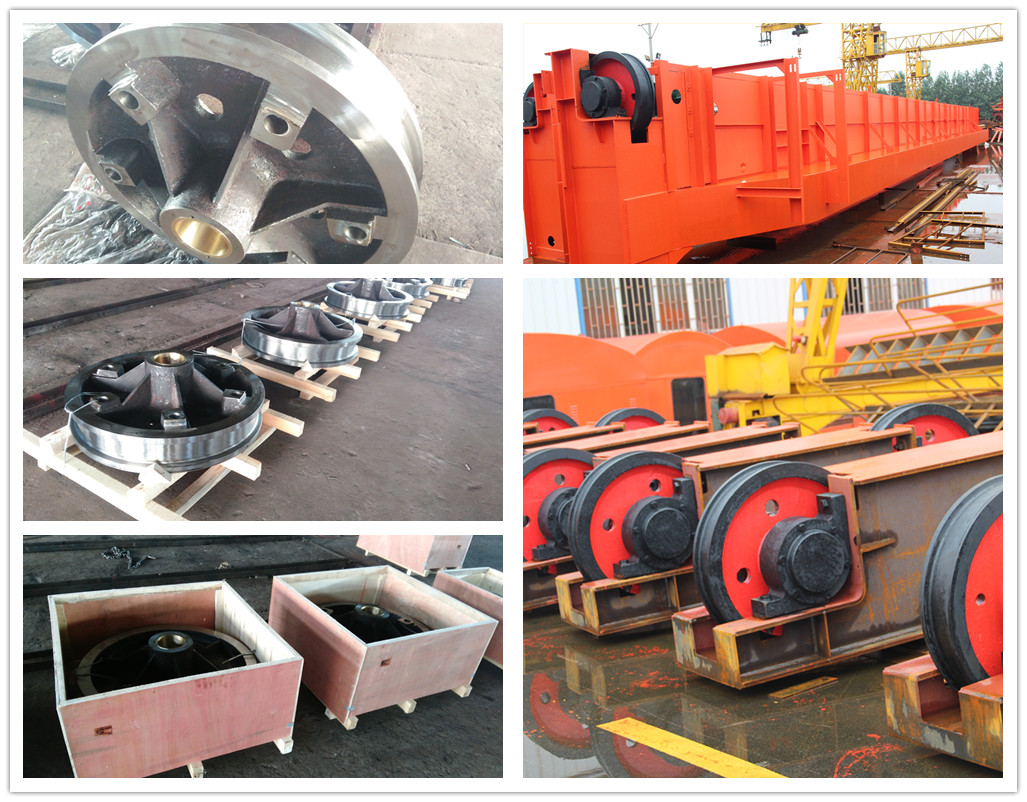

crane wheels.jpg




Type:

Forging Wheel/Casting Wheel

Application:

Crane,trolley,transfer car,heavy duty industry,Port crane,Steel factory etc

Material:

4140/SCM440/42CrMo,ssw-QIR/65#steel,65Mn,50SiMn,QT800

Dimension:

Φ250, Φ350, Φ400, Φ500, Φ600, Φ700, Φ800, Φ 1000, Φ 1200 or as your require

Process:

Forging/Casting

Quality Control:

UT,MT,RT,PT,chemical composition test,mechanical property test,etc.

Heat Treatment:

Quenching and Tempering

Quenching Depth:

no less than 20mm

Coating:

Black Oxide+Rust-proof oil

Inspection:

Besides our in-house inspecion, you could also choose a third party inspection

Standard:

ASTM, ASME, DIN, JIS, ISO, BS, API, EN,GOST,etc

Packing:

Seaworthy plywood packaged on steel pallets or as customer's request

Competitive Advantage:

Quality control and management to the whole produce process, including ingot smelting,forging, heat treatment, machining and strictly final inspection prior to delivery.
